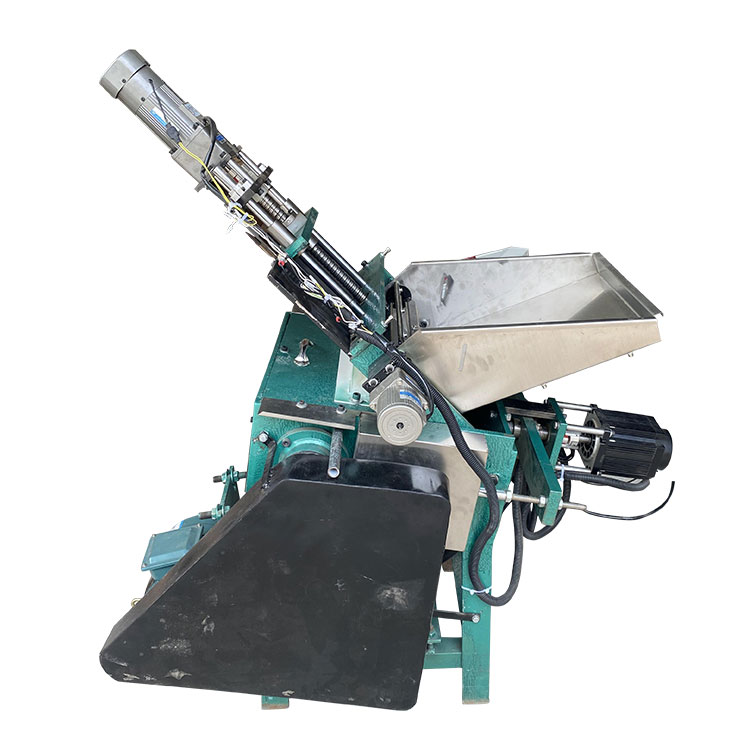

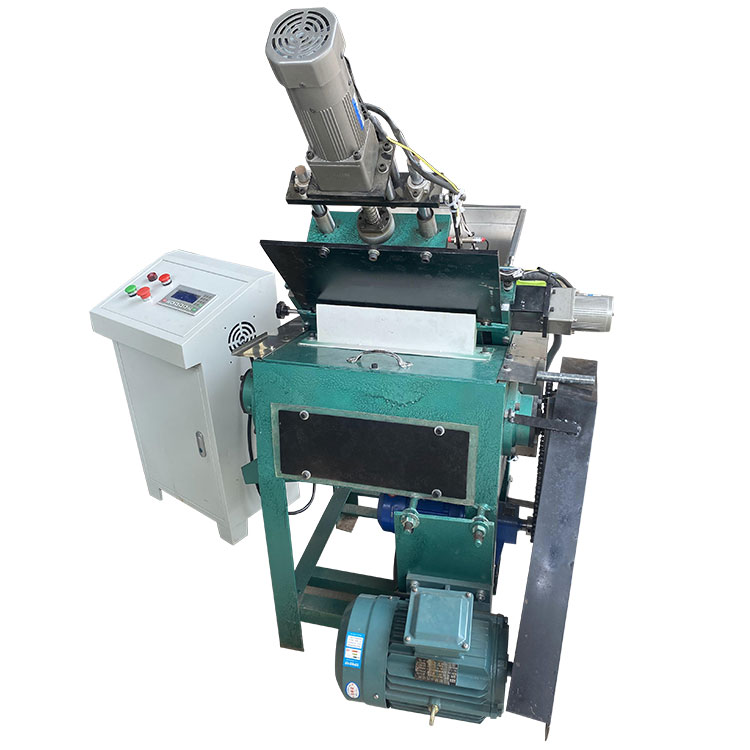

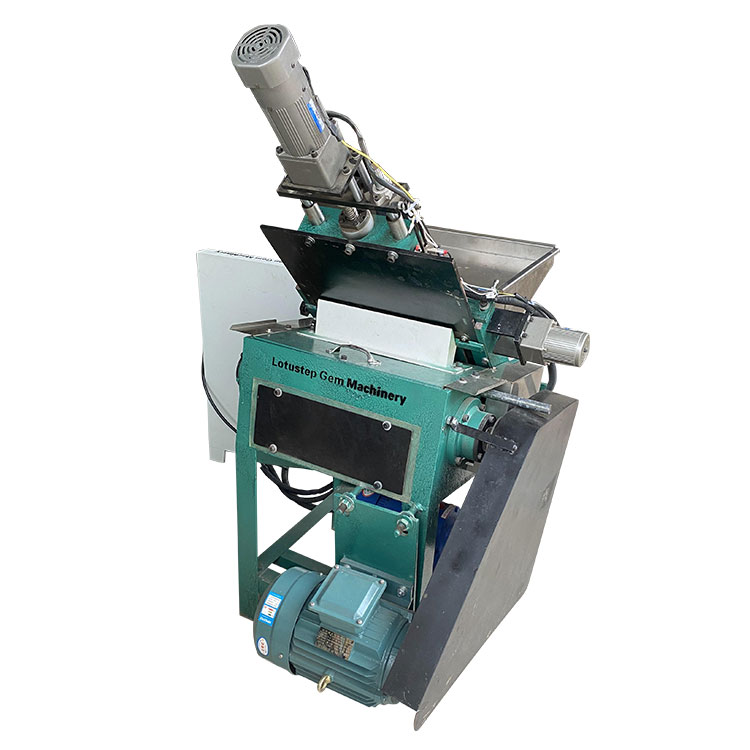

LS-300-2-E Automatic Feeding CNC Stone Bead Milling Machine

LS-300-2-E Automatic Feeding CNC Stone Bead Milling Machine

CNC Stone bead milling machine was deisgned for stone bead mass production sized 6-14mm, but coarse milling.
Automatic feeding, adjustable milling time, bead will come out automatically from the machine, the working stroke for each bead is same, so the accuracy is good.
Diamond plate Grit to choose from 45/60/80/100/120/150/180/220, decided by the stone hardness, we suggest grit 80/100 for very hard stone like jade and agate, grit 240 for stone like natural turquoise.
We suggest this automatic bead milling machine for huge quantity demand, the machine can make 150-200KG 6mm agate bead(10 hours)

Specification of LS-300-2-E
Voltage:380V
Power:4KW
Speed of diamond wheel:1400 RPM
Overall Size:L100*W80*H145 cm

The photo below shows how to automatically make round stone bead from rough stone, this machine set can make hard stone bead like jade, agate, quartz bead, and soft bead like turquoise bead, size from 3/4/6/8/10/12/14/16/18/20 mm, 15-50 kg bead one day

Step one:Use 24'' slab saw cut the big rock into small size rock(LS-001-24-A)
Step two:Use 16'' multi blade slab cutting machine, cut small size rock into slabs(LS-002-A)
Step three:Use automatic cut slab into strips machine(LS-006-A)
Steph four:Use automatic cut strips into stone cube(LS-006-B)
Step five:Use stone bead chamfer machine, remove the sharp corner of the bead

(LS-300-1-A)
Step six:Use coarse stone bead milling machine, rough milling, after this step, the bead almost round(LS-300-2-A)
Step seven:Use high precision stone bead milling machine, make bead perfect round

(LS-300-3-A)
Step eight:Use multi needle/tip ultrasonic drilling machine, can drill many beads at one time automatically(LS-100-1800W)
Step nine:Use vibration tumbler polishing machine, polish the drilled beads, make it shiny enough.

The photo below shows how to make stone bead with small batch, 2-5 kg one day.

Step one:Use 12'' manual stone cutting machine, cut stone into slab, strips, cube(LS-007-B)
Step two:Use stone bead chamfer machine, remove the sharp corner of the bead

(LS-300-1-A)
Step three:Use coarse stone bead milling machine, rough milling, after this step, the bead almost round(LS-300-2-A)
Step four:Use high precision stone bead milling machine, make bead perfect round

(LS-300-3-A)
Step five:Use manual bead drilling machine, drill bead one by one(LS-306-B)
Step six:Use vibration tumbler polishing machine, polish the drilled beads, make it shiny enough.
