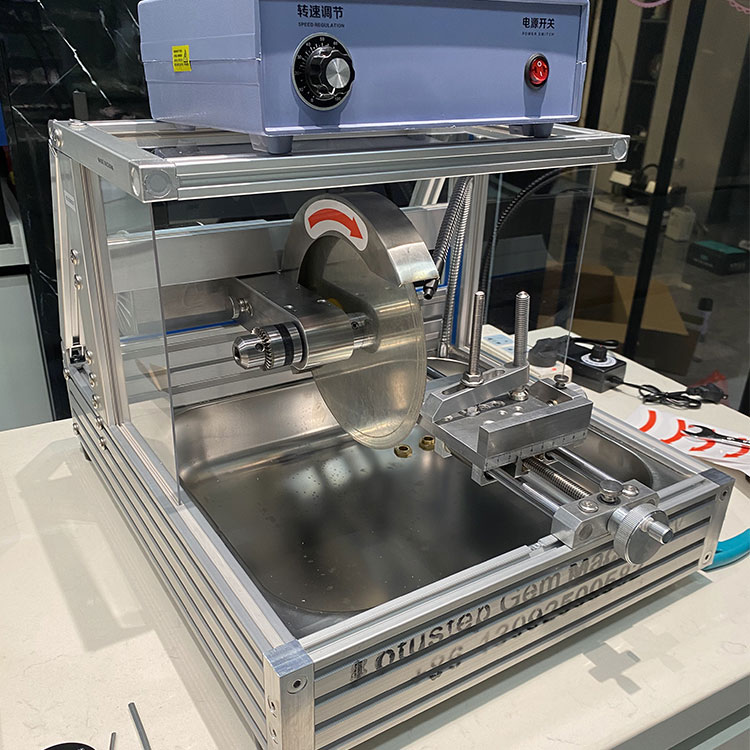

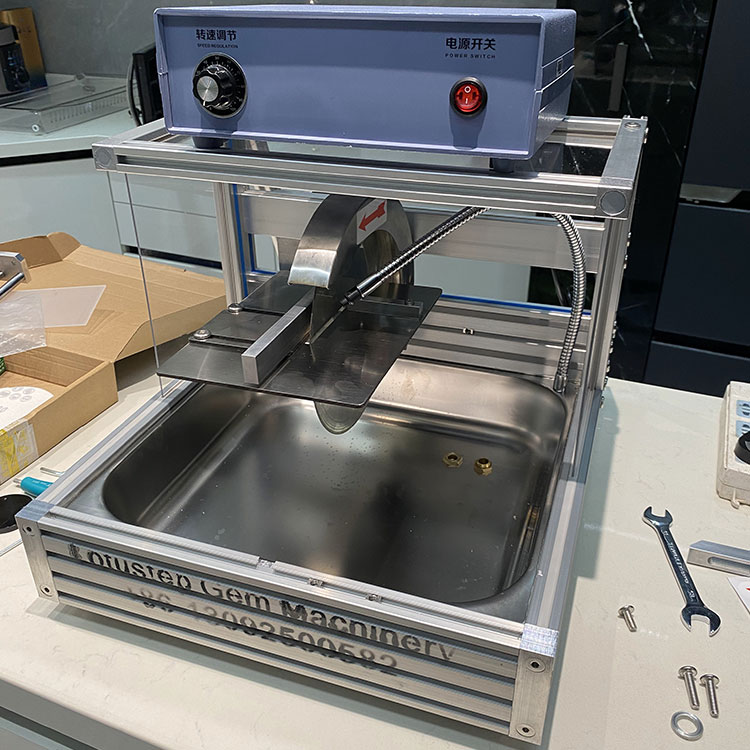

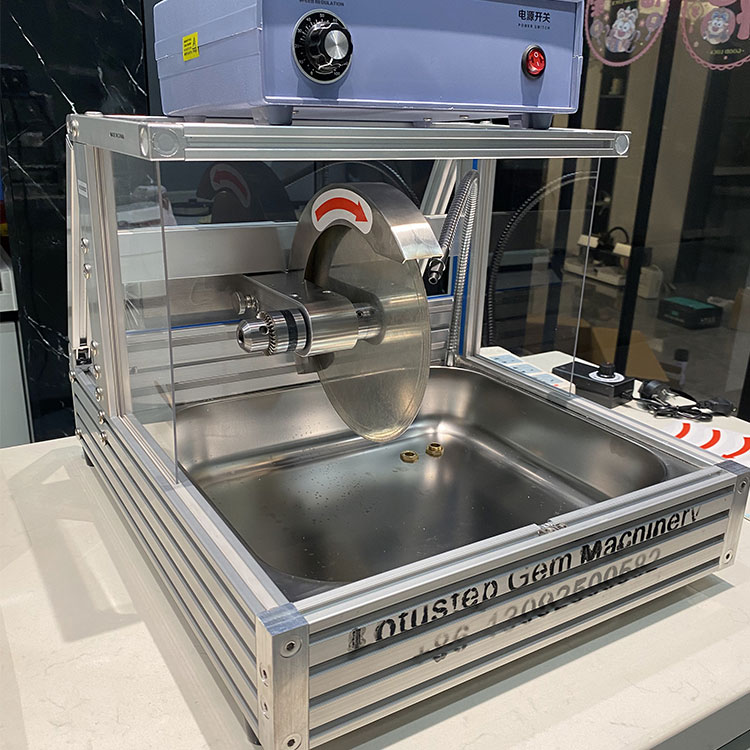

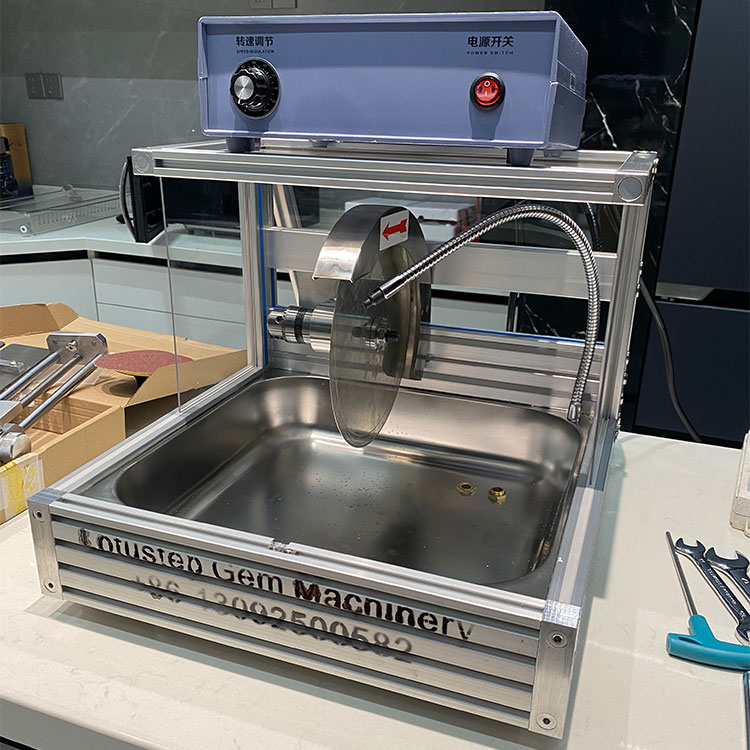

LS-044 6'' 8'' Multi-Function Lapidary Trim Saw
LS-044 6'' 8'' Multi-Function Lapidary Trim Saw
The whole machine uses high-standard 6061 aluminum and SUS304 stainless steel, used for jade gemstone cut, grind and polish, multi function.

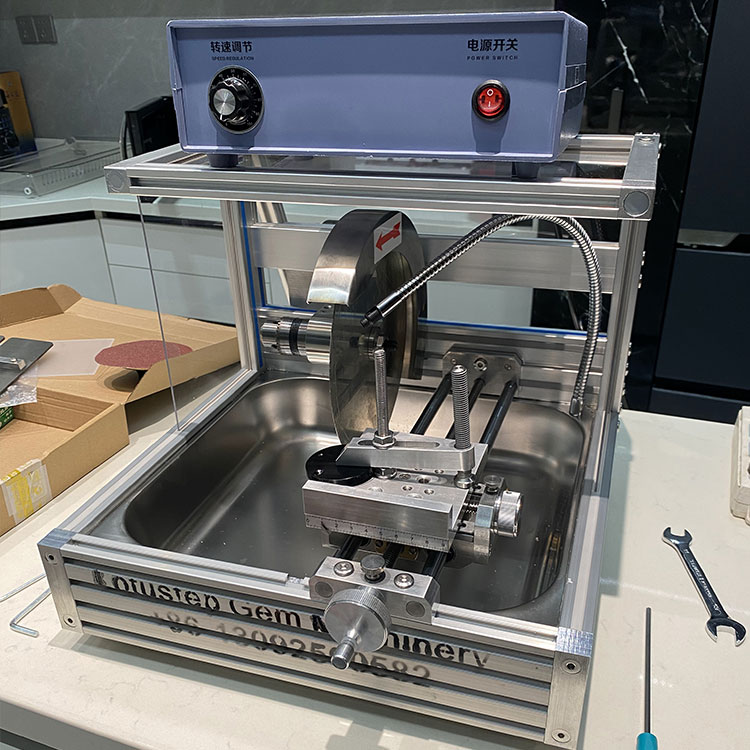

You can cut manully(cutting table size 200*150mm) or with a stone clamp(manual feeding with a stone clamp, clamp stroke 210mm)
Worked as a trim saw with a 6'' or 8'' diamond blade.
Worked with chuck adapter, it can work as a point carving unit with diamond burr.

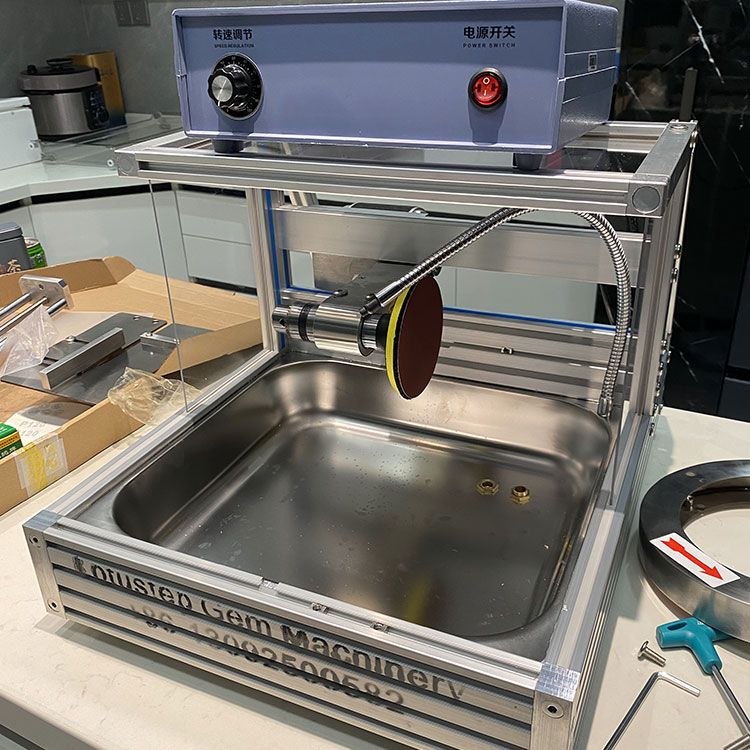

Work as a polishing machine with flexible diamond pad or sandpaper.
Input AC220v, comeout DC24V,
You can cut manully(cutting table size 200*150mm) or with a stone clamp(manual feeding with a stone clamp, clamp stroke 210mm)
Worked as a trim saw with a 6'' or 8'' diamond blade.
Worked with chuck adapter, it can work as a point carving unit with diamond burr.
Work as a polishing machine with flexible diamond pad or sandpaper.
Input AC220v, comeout DC24V,
LS-044 6'' 8'' Multi-Function Lapidary Trim Saw
The whole machine uses high-standard 6061 aluminum and SUS304 stainless steel,
used for jade gemstone cut, grind and polish, multi function.
You can cut manully(cutting table size 200*150mm) or with a stone clamp(manual feeding with a stone clamp, clamp stroke 210mm)
Worked as a trim saw with a 6'' or 8'' diamond blade.
Worked with chuck adapter, it can work as a point carving unit with diamond burr.
Work as a polishing machine with flexible diamond pad or sandpaper.
Input AC220v, comeout DC24V, safe use.
Specification of LS-044
Voltage:110/220v
Power:1080w
Speed of blade:8000 RPM
Blade to use:6''(150mm) 8''(200mm)
Overall Size:L48*W39*H33 cm
