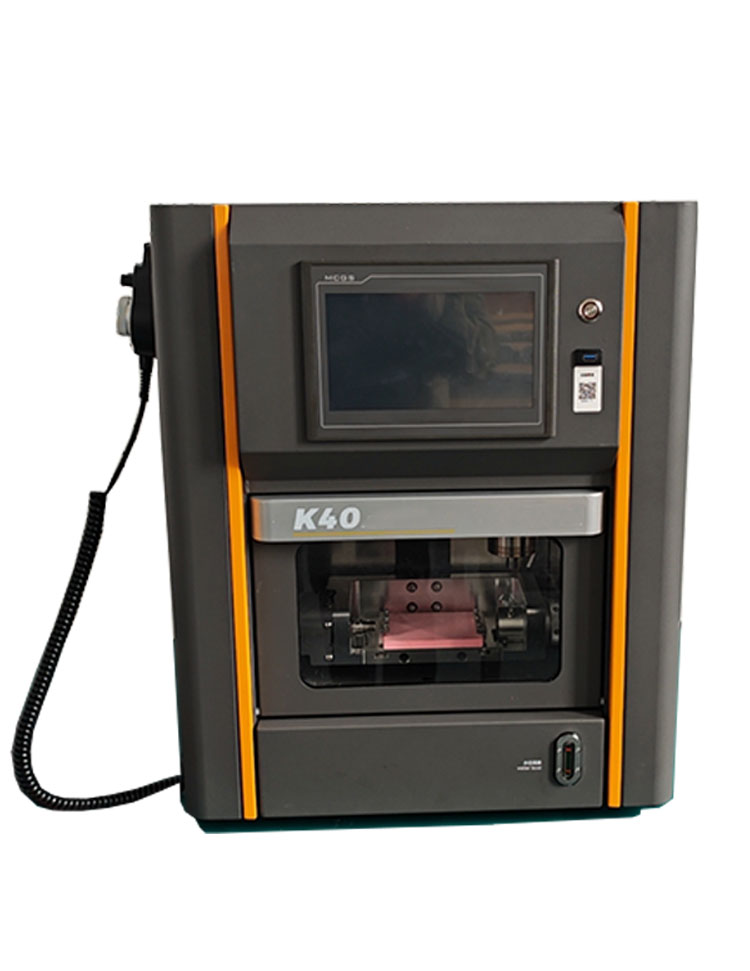

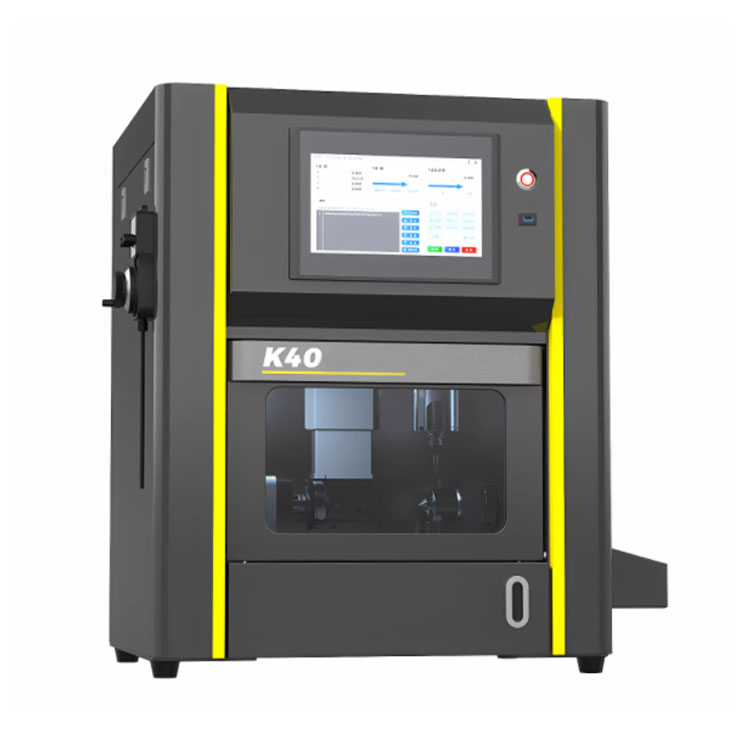

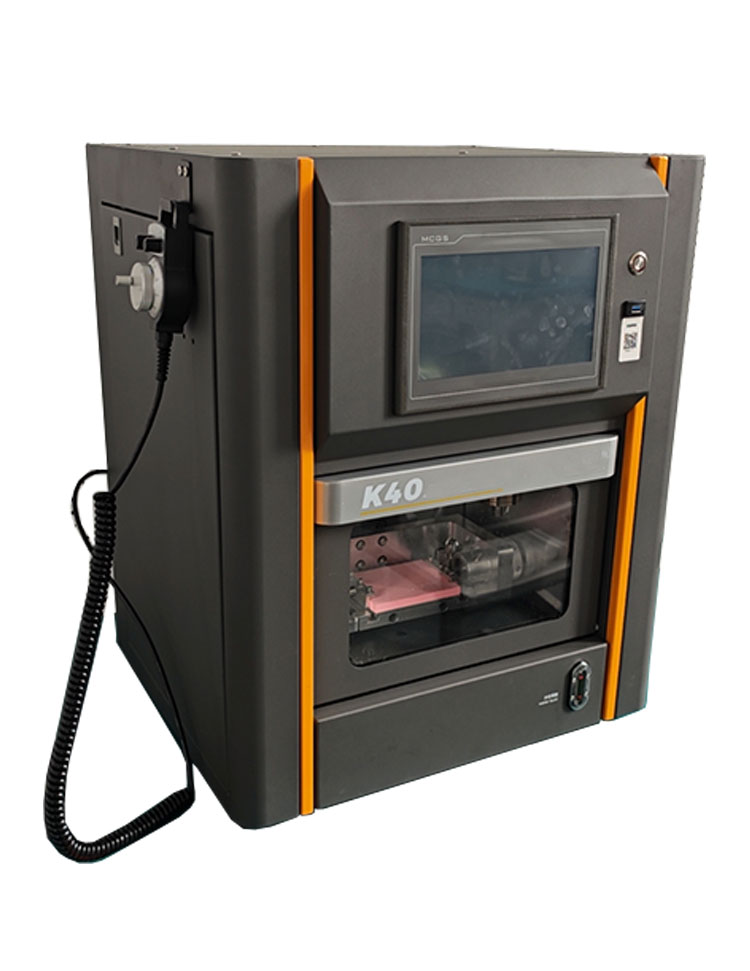

LS-FK40 Upgraded 3Axis 4Axis 3D Gemstone CNC Carving Machine
LS-FK40 Upgraded 3Axis 4Axis 3D Gemstone CNC Carving Machine

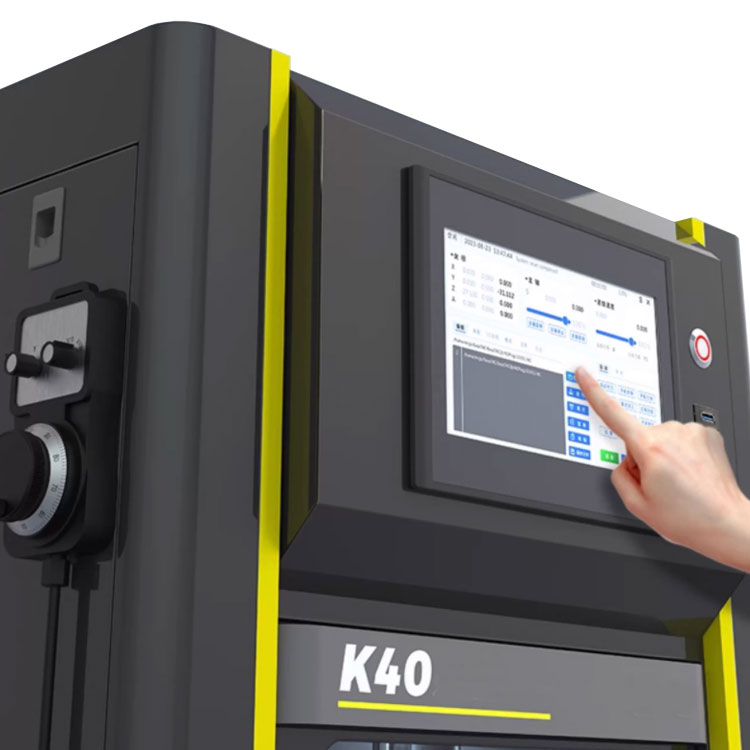

LS-FK40 upgraded with LS-FK30, Touchscreen CNC, come with electronic handwheel.
Used for gemstone cnc carving, like agate, jade, fossi, crystal, shell, turquoise and opal.
It can work with 3 axis for flat carving, also 4 axis for 3D carving.
Machine work with a lid, protect from noise and water splash.

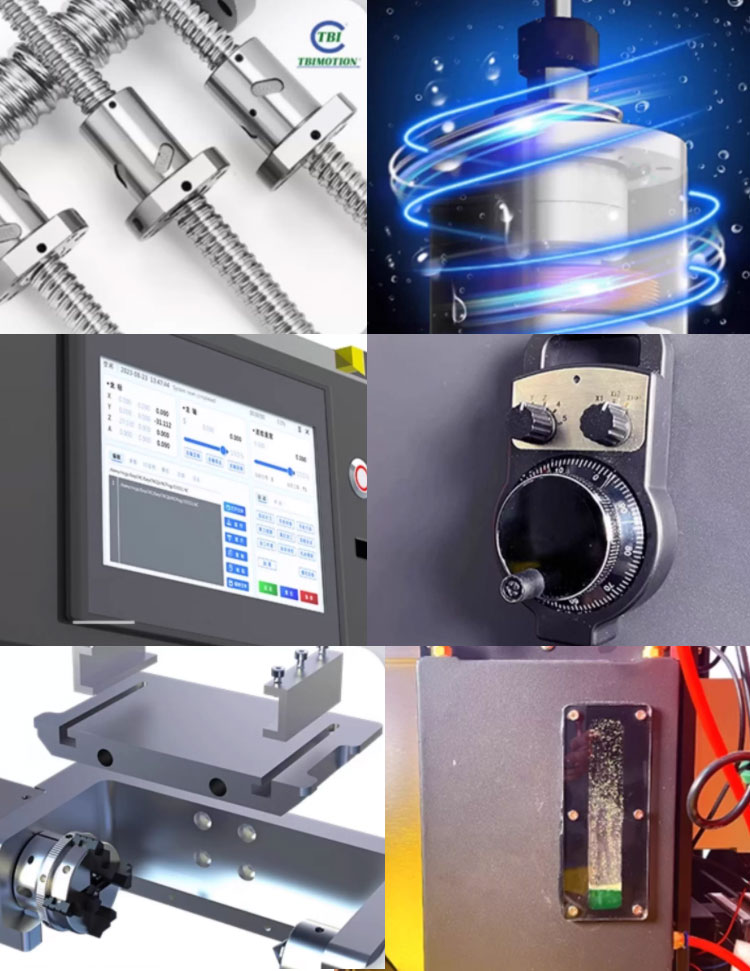

TIMOTION ball screw,
Widely used for hobby use, home use for its high performance and limited size.
Used for gemstone cnc carving, like agate, jade, fossi, crystal, shell, turquoise and opal.
It can work with 3 axis for flat carving, also 4 axis for 3D carving.
Machine work with a lid, protect from noise and water splash.
TIMOTION ball screw,
Widely used for hobby use, home use for its high performance and limited size.
LS-FK40 Upgraded 3Axis 4Axis 3D Gemstone CNC Carving Machine
LS-FK40 upgraded with LS-FK30, Touchscreen CNC, come with electronic handwheel.
Used for gemstone cnc carving, like agate, jade, fossi, crystal, shell, turquoise and opal.
It can work with 3 axis for flat carving, also 4 axis for 3D carving.
Machine work with a lid, protect from noise and water splash.
TIMOTION ball screw,
Widely used for hobby use, home use for its high performance and limited size.
Specification of LS-FK40
Voltage:220 v
Power:1.2 KW
Main shaft speed:0-36000 rpm
Flat carving size(X/Y/Z):150*110*115 mm
3D carving size:Φ90*L135 mm
Leadscrew:Imported
Drive mode:Servo motor
Overall Size:L60*W55*H75 cm
