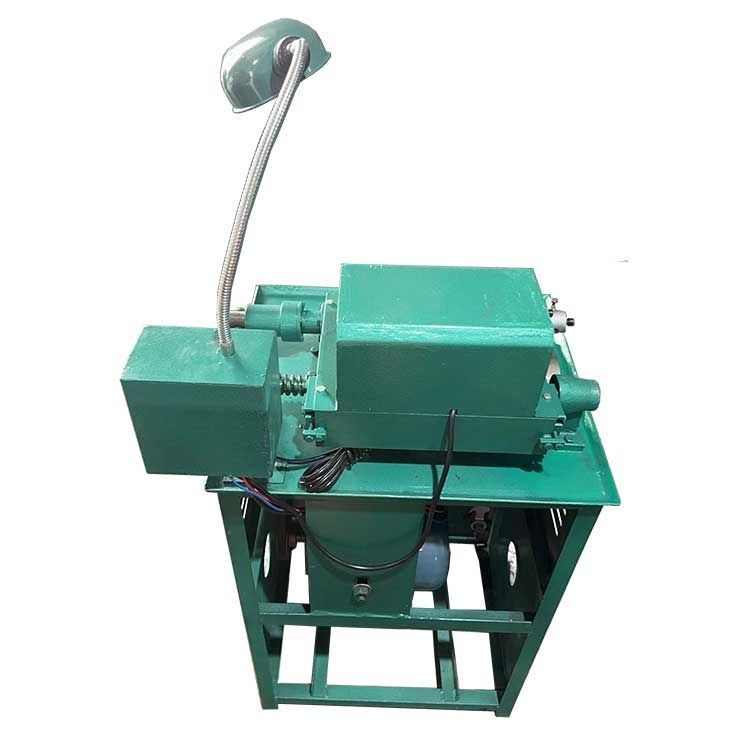

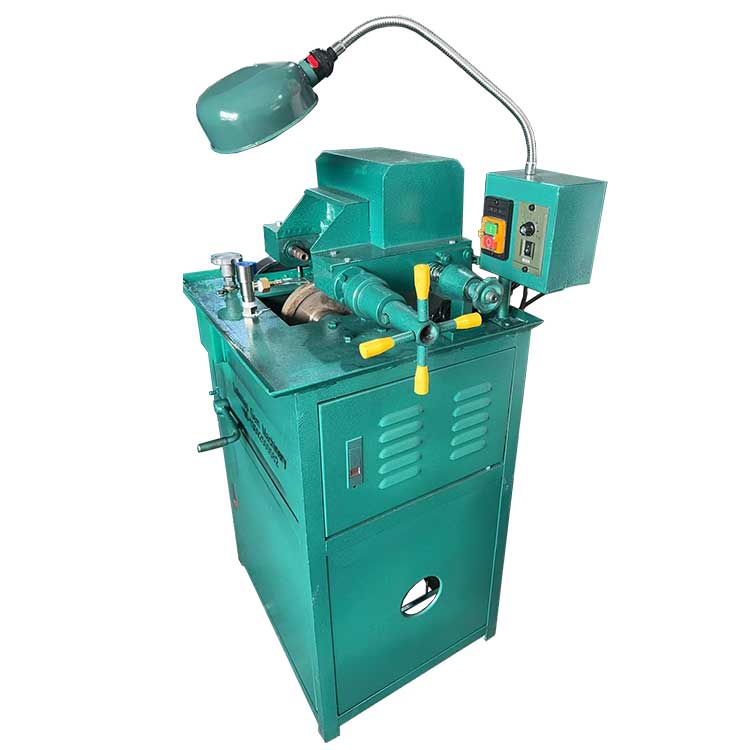

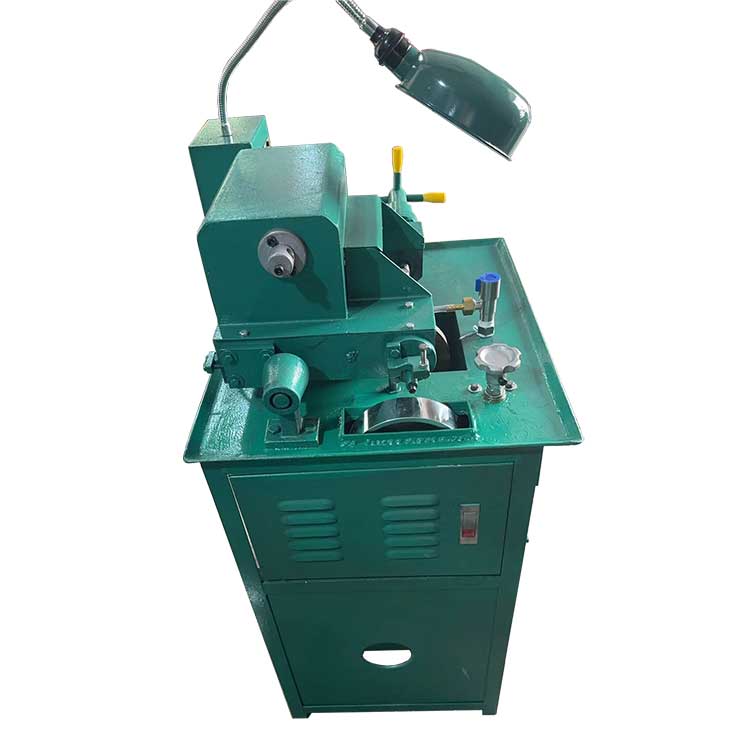

LS-202 Gemstone Shaping Machine With Side Assist Wheel

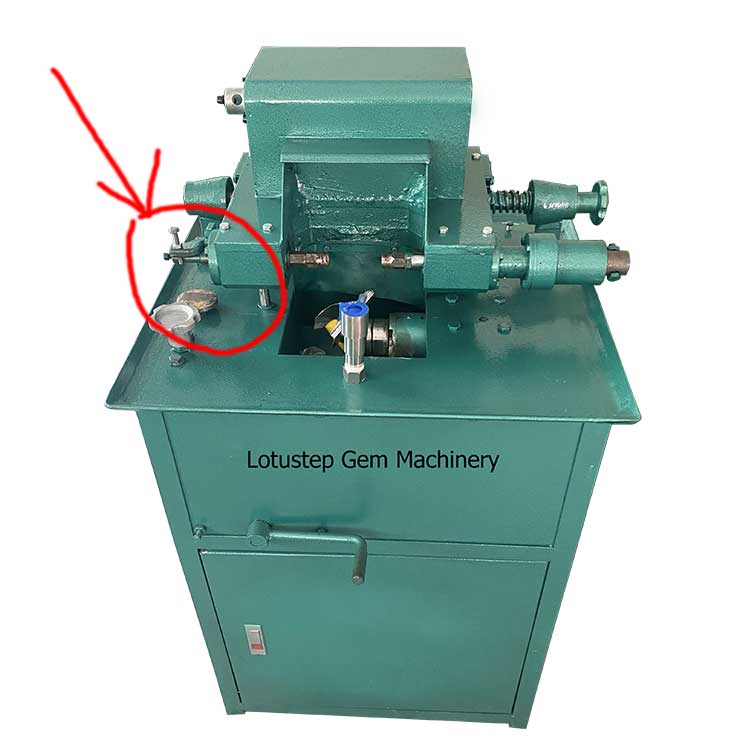

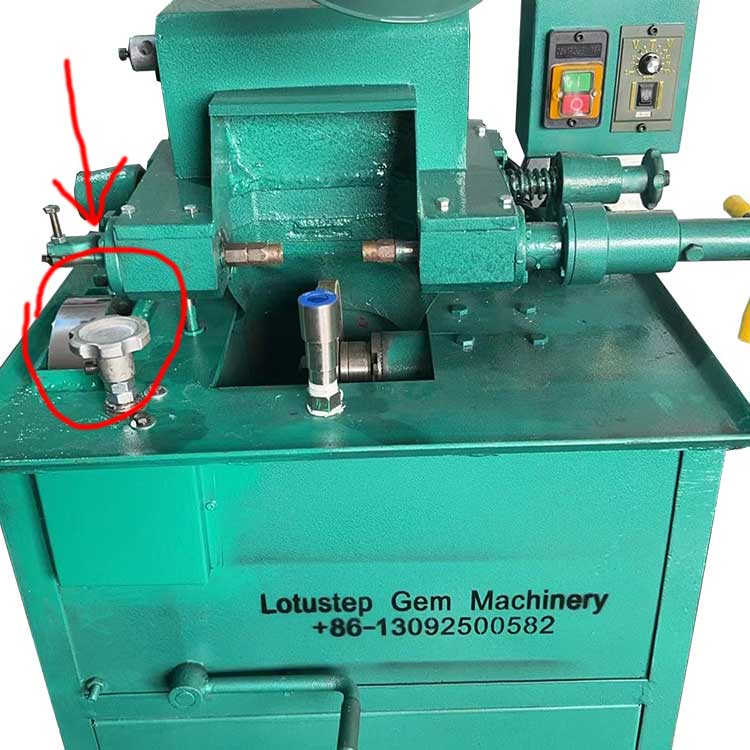

There is a assist wheel left side of the machine, which help better in shaping than normal shaping machine.
The stone would fix with a clamp, clamp always rotating when the machine working, the rotating speed adjustable depend on stone hardness and size.
This model max cutting stone width 50-60 mm.
With water recycle system, reduce the water pollution
LS-202 Gemstone Shaping Machine With Side Assist Wheel
LS-202 Gem Shaping Machine was designed especially for cabochon,
oval cab, heart cab and teardrop cab.
There is a assist wheel left side of the machine, which help better in shaping than normal shaping machine.
The stone would fix with a clamp, clamp always rotating when the machine working,
the rotating speed adjustable depend on stone hardness and size.
This model max cutting stone width 50-60 mm.
With water recycle system, reduce the water pollution
First choice for gemstone mass production with uniform shape and size,
one machine can produce 1000-2500 pcs of stone for 8 hours.
Specification of LS-202
Voltage:220/380 V
Power:0.75 KW(1 HP)
Speed of shaping wheel:2880 RPM
Speed of stone clamp:0-200 RPM
Max cutting size:50 mm
Overall Size:L56*W52*H115 cm
With flat base(without assistance wheel)LS-201
Samples make from the machine
Diamond Wheels to use
