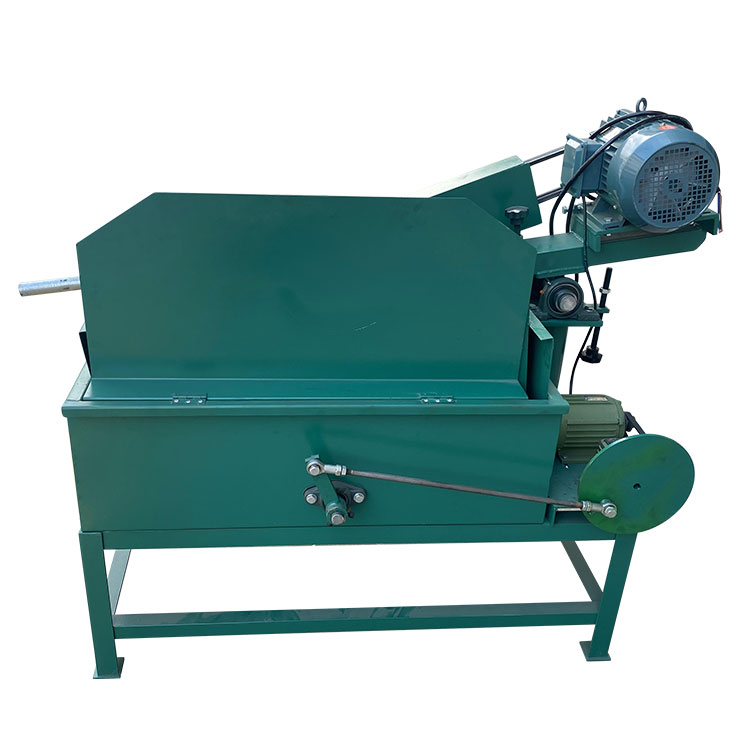

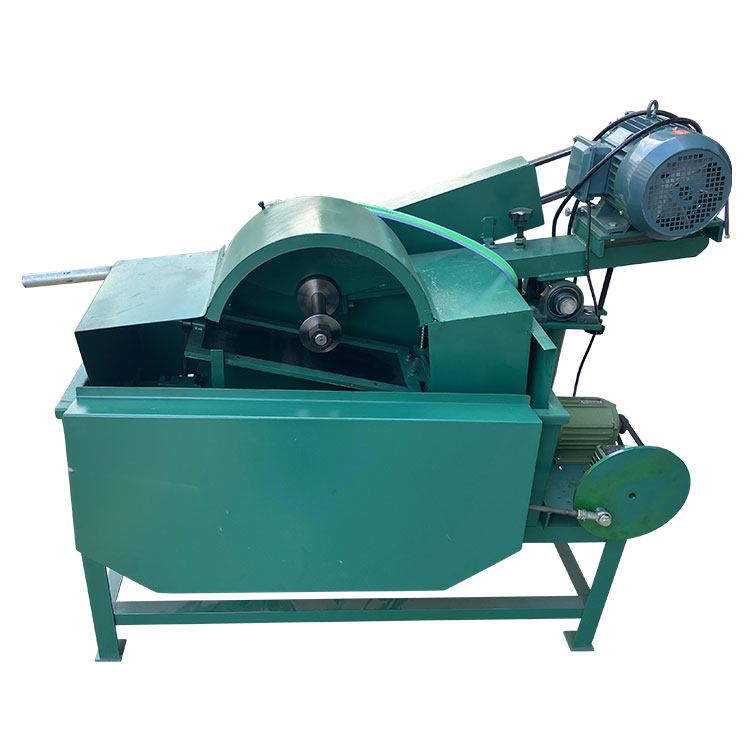

LS-013 12'' 14'' Automatic Multi Blade Jade Agate Quartz Stone Slab Cutting Machine

LS-013 12'' 14'' Automatic Multi Blade Jade Agate Quartz Stone Slab Cutting Machine

This machine used for different kinds of gemstone, like jade, agate, quartz, crystal, fossi and gemstone rough stone slab cutting,
Cut slab thickness decided by the gap between two diamond blades, we call them blade spacer, material should be Aluminum,

it is light in weight and can help decrease the pressure on the blade shaft,

we use 7.5mm blade spacer for 6mm slab cut, use 11.5mm blade spacer for 10mm slab cut.
It can load 4-18 pcs of diamond blade at a same time,

cut slab thickness can be 6,8,10,12,15,20 mm as request.

Blade quantity decided by the slab thickness to cut, larger the thickness,

less the blade quantity.
Standard blade to use 12'', max can used with 14''.

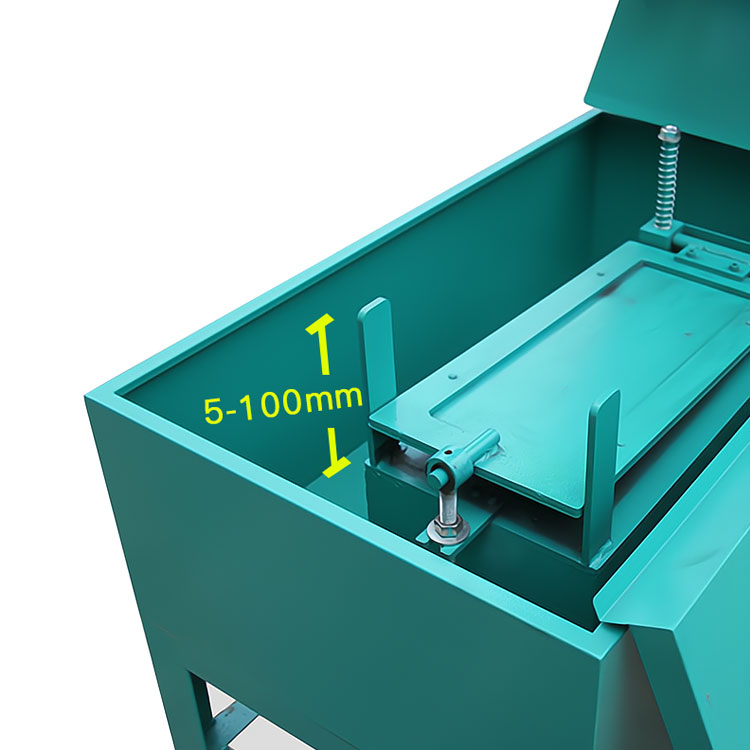

Stone clamp would move forward and back automatically, make the cutting faster
Max stone cutting size 7''x7''x4'' (180x180x100 mm) Length x Width x Thickness
Come with a tank, a pump

Specification of LS-013

Voltage:AC 380 V

Power:4 KW

Speed of blade:1300 RPM

Standard blade size:12''(300 mm), max can be 14''(350 mm)

Overall Size:L140*W66*H123 cm

Thick Notched Rim Diamond Blade

Used for medium hardness stone, like jade

Continuous Rim Diamond Blade

Used for stone like agate

Diamond Segment Blade

Used for hard stone like agate and quartz
