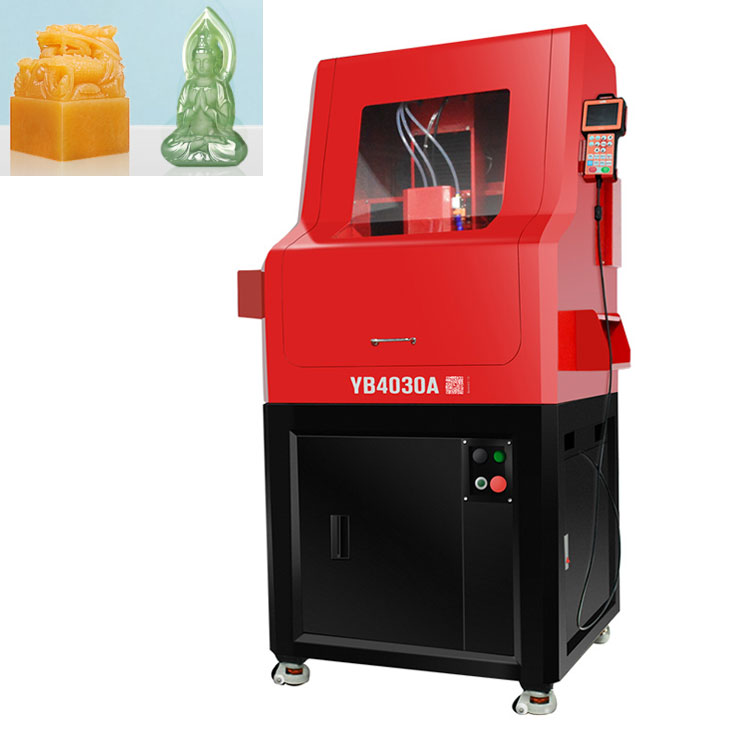

LS-YB4030A 3Axis Convex Concave 4Axis 3D Cameo CNC Carving Machine

LS-YB4030A was designed for gemstone cameo cnc carving, like agate, jade, fossi, crystal, shell, turquoise and opal.
It can work with 3 axis for flat carving, also 4 axis for 3D carving.
Machine work with a lid, protect from noise and water splash.
TIMOTION ball screw, unique hand control.

ꄴPrevious： LS-FK10S FK30 Desktop 3Axis 4Axis 3D Gemstone CNC Carving Machine

ꄲNext： YB4030X Multifunction 3Axis 4Axis 3D CNC Carving Machine

Convex Concave Cameo teaching video

3D Carvings teaching video

LS-YB4030A 3Axis Convex Concave 4Axis 3D Cameo CNC Carving Machine

LS-YB4030A was designed for gemstone cameo cnc carving, like agate, jade,

fossi, crystal, shell, turquoise and opal.
It can work with 3 axis for flat carving, also 4 axis for 3D carving.
Machine work with a lid, protect from noise and water splash.
TIMOTION ball screw, unique hand control.

Specification of LS-YB4030A
Voltage:220 v
Power:2.1 KW
Main shaft speed:0-24000 rpm

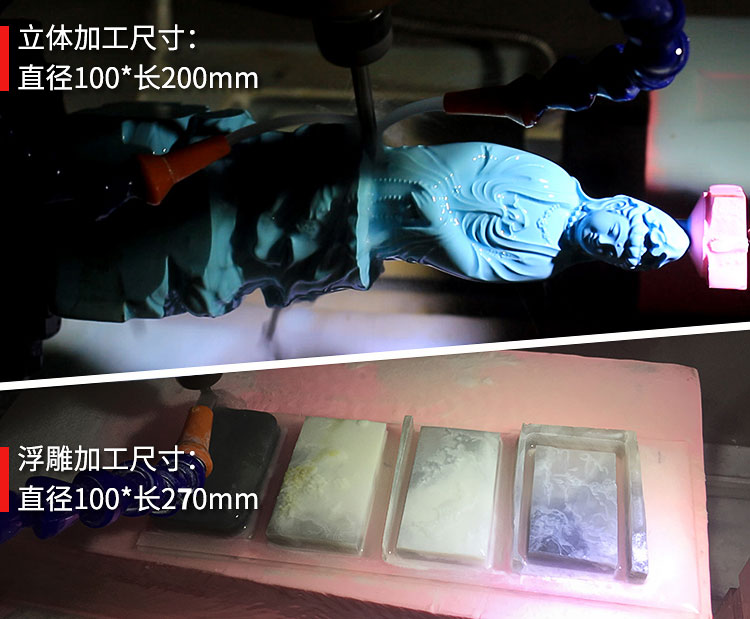

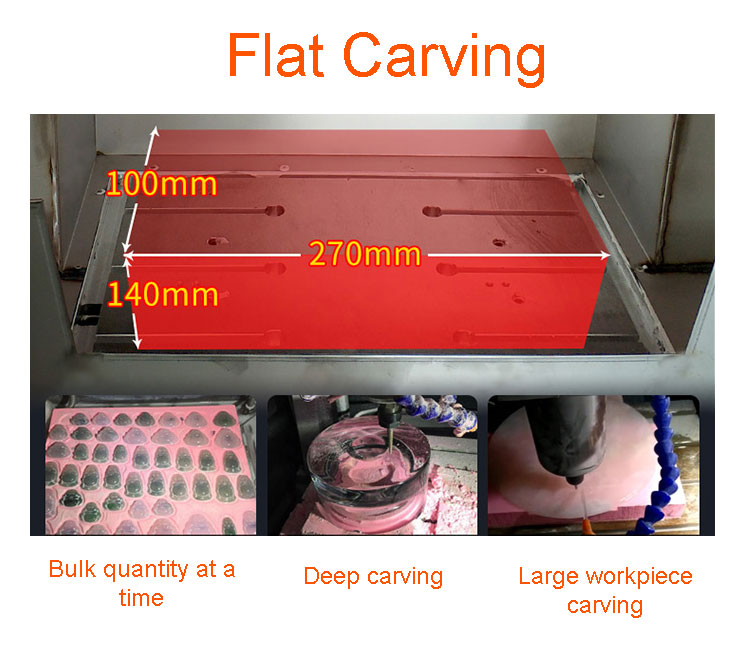

Flat carving size(X/Y/Z):270*100*140 mm

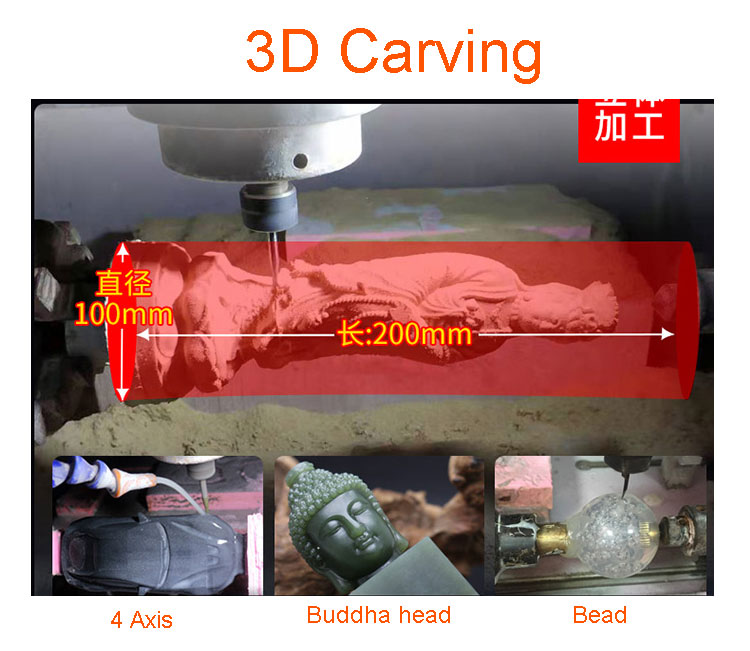

3D carving size:Φ100*L200 mm
Leadscrew:Imported
Drive mode:Servo motor
Overall Size:L78*W75*H170 cm
