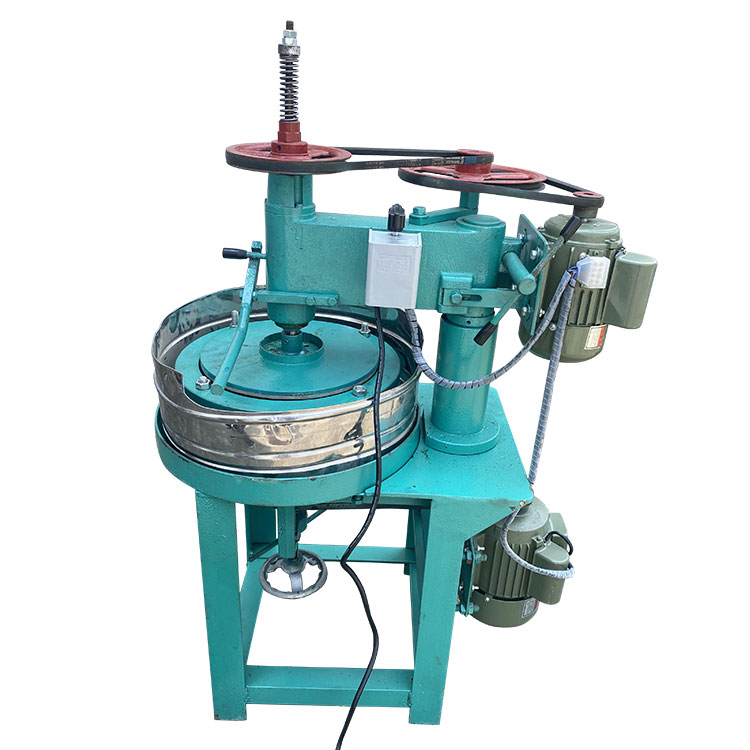

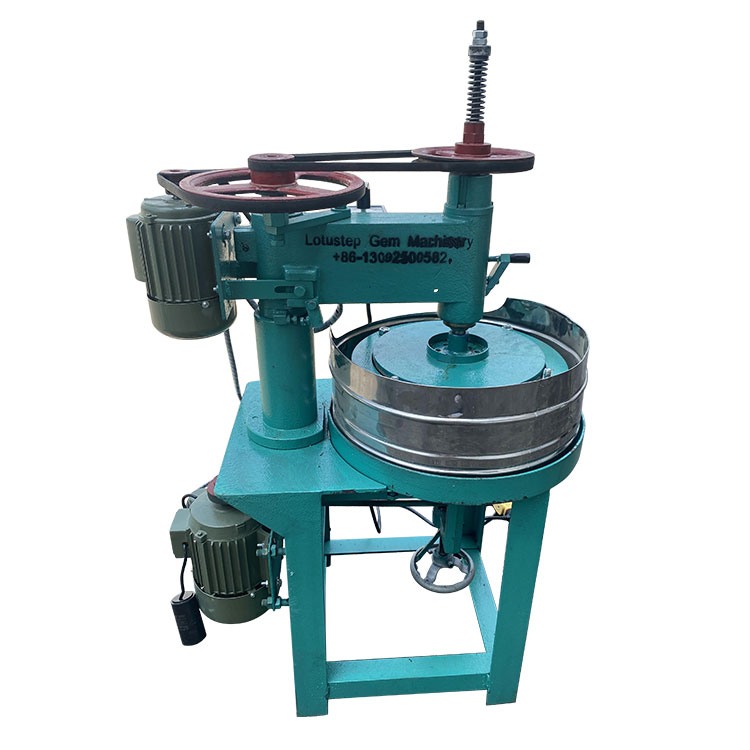

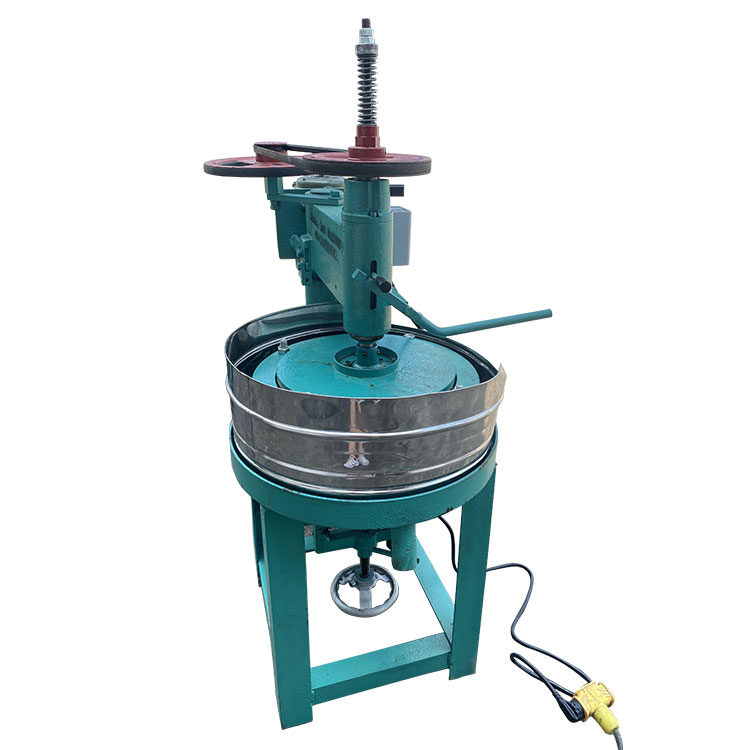

LS-408 Dual Drive Amber Turquoise Shell Opal Coral Bead Milling Machine

LS-408 Dual Drive Amber Turquoise Shell Opal Coral Bead Milling Machine

LS-408 Dual Drive bead milling machine is upgraded from LS-406 single drive bead milling machine, not only works for hard stone bead milling like jade, agate and quartz, also material soft in hardness, like amber, turquoise, lapis, opal, coral, easy to break when milling, pressure of the upper cover can adjust by the top screw,

stable pressure can help protect the bead well when running.
Work with 2 motors, one for main motor(diamond plate), one for top cover.

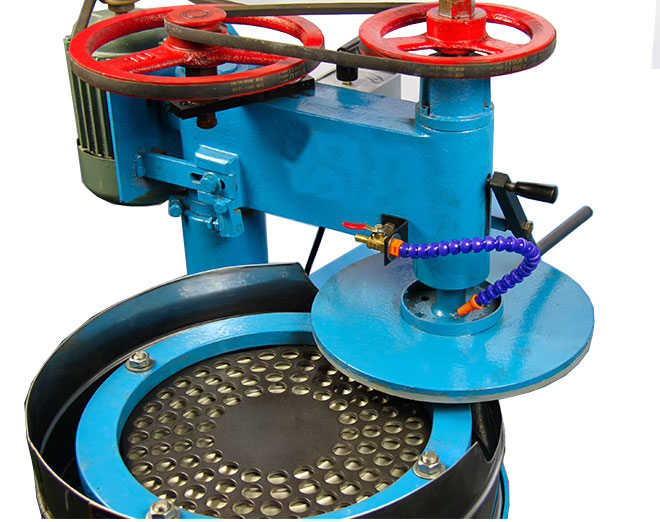

Work with a diamond plate and a iron plate, put beads in the iron plate holes,

rotation direction for upper cover and diamond plate is opposite.
Higher efficiency than single drive LS-406 stone bead milling machine,

only take 5-10 minutes finish the milling process, save time and better milling result.
Combines the advantage of coarse stone bead milling machine and high precison bead milling machine.

Specification of LS-408-A
Voltage:110/220 V
Power:0.37KW(1/2HP)+0.75KW(1 HP)
Speed of Upper Cover:100 RPM
Speed of Diamond Plate:600 RPM
Overall Size:L84*W51*H115 cm

Specification of LS-408-B

Variable Speed Dual Drive Stone Bead Milling Machine
Diamond Plate with variable speed
Voltage:110/220 V
Power:0.37KW(1/2HP)+0.75KW(1 HP)
Speed of Upper Plate:100 RPM
Speed of Diamond Plate:0-600 RPM
Overall Size:L84*W51*H115 cm

Diamond Plate and Iron Plate to use

The photo below shows how to automatically make round stone bead from rough stone, this machine set can make hard stone bead like jade, agate, quartz bead, and soft bead like turquoise bead, size from 3/4/6/8/10/12/14/16/18/20 mm, 15-50 kg bead one day

Step one:Use 24'' slab saw cut the big rock into small size rock(LS-001-24-A)
Step two:Use 16'' multi blade slab cutting machine, cut small size rock into slabs(LS-002-A)
Step three:Use automatic cut slab into strips machine(LS-006-A)
Steph four:Use automatic cut strips into stone cube(LS-006-B)
Step five:Use stone bead chamfer machine, remove the sharp corner of the bead

(LS-300-1-A)
Step six:Use coarse stone bead milling machine, rough milling, after this step, the bead almost round(LS-300-2-A)
Step seven:Use high precision stone bead milling machine, make bead perfect round

(LS-300-3-A)
Step eight:Use multi needle/tip ultrasonic drilling machine, can drill many beads at one time automatically(LS-100-1800W)
Step nine:Use vibration tumbler polishing machine, polish the drilled beads, make it shiny enough.

The photo below shows how to make stone bead with small batch, 2-5 kg one day.

Step one:Use 12'' manual stone cutting machine, cut stone into slab, strips, cube(LS-007-B)
Step two:Use stone bead chamfer machine, remove the sharp corner of the bead

(LS-300-1-A)
Step three:Use coarse stone bead milling machine, rough milling, after this step, the bead almost round(LS-300-2-A)
Step four:Use high precision stone bead milling machine, make bead perfect round

(LS-300-3-A)
Step five:Use manual bead drilling machine, drill bead one by one(LS-306-B)
Step six:Use vibration tumbler polishing machine, polish the drilled beads, make it shiny enough.
