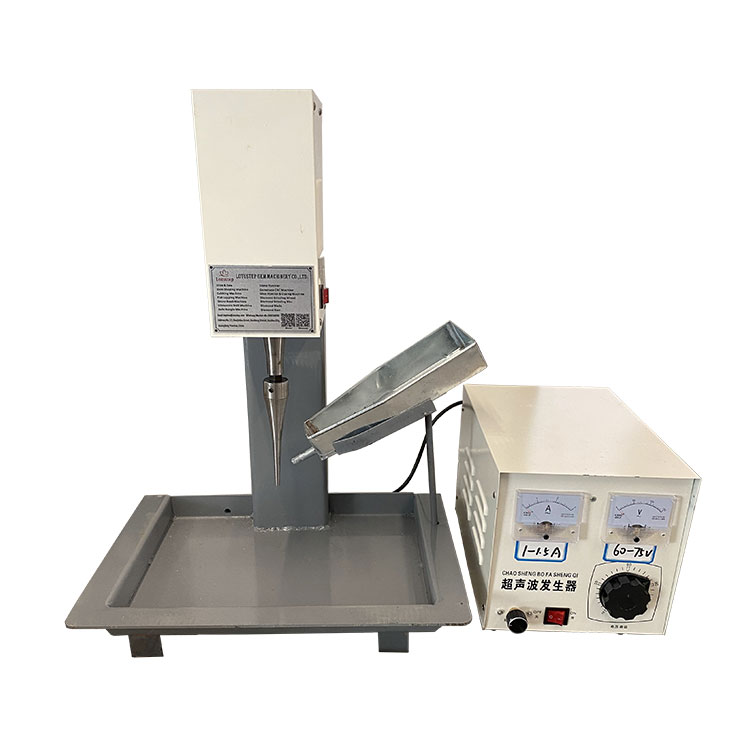

  • LS-460 Ultrasonic Drill Machine
    Ultrasonic drilling machine was designed to drill a hole on gemstone from hard agate and japer to really delicate materials like opal and turquoise. Drilling hole size from 1-3mm normally.
    There is no limit in stone shape, stone size, the drilling process would be manual, the workpiece is hand held without harm to the operator.
    Ultrasonic drilling machine work with 20 KHz 650w ultrasonic generator, high-speed vibrations move the drill tip which vibrates the grit against the stone.
    ¥ 0.00

    立即购买

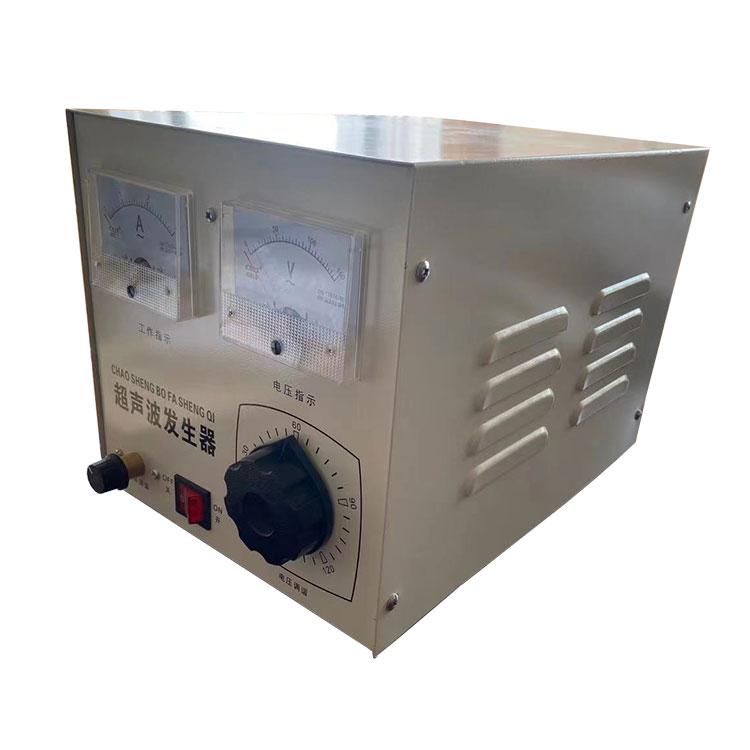

  • LS-461 650W 20KHz Ultrasonic Generator
    Ultrasonic generator work with 20 KHz, power 650w, designed for single tip LS-460 ultrasonic drill machine.
    We suggest the drilling voltage between 60-75V, the current between 1.0-1.5A.
    ¥ 0.00

    立即购买

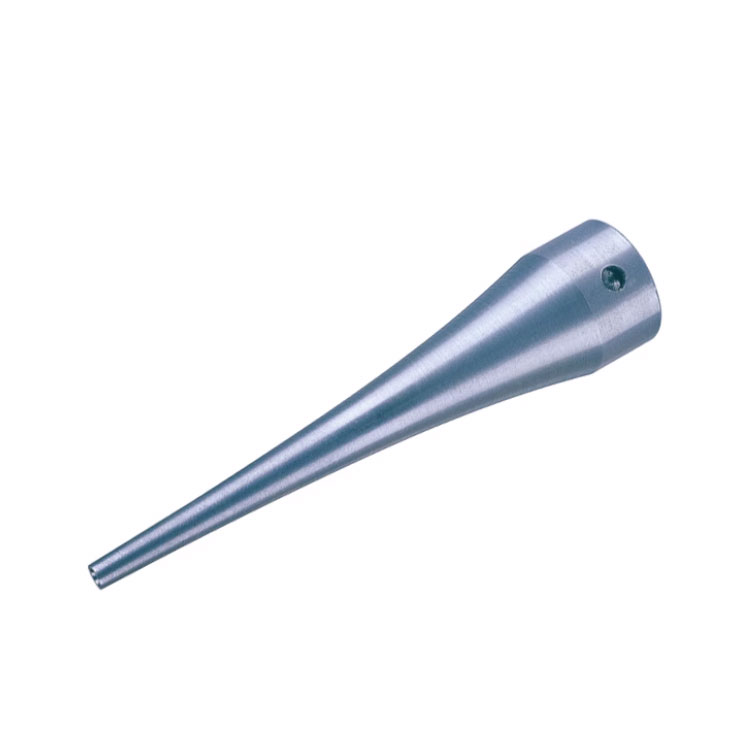

  • LS-462 Drill Cone
    This is the tool, which we will solder the drilling tips, we suggest one ultrasonic drill machine used with 5-10 pcs of drill cone
    ¥ 0.00

    立即购买

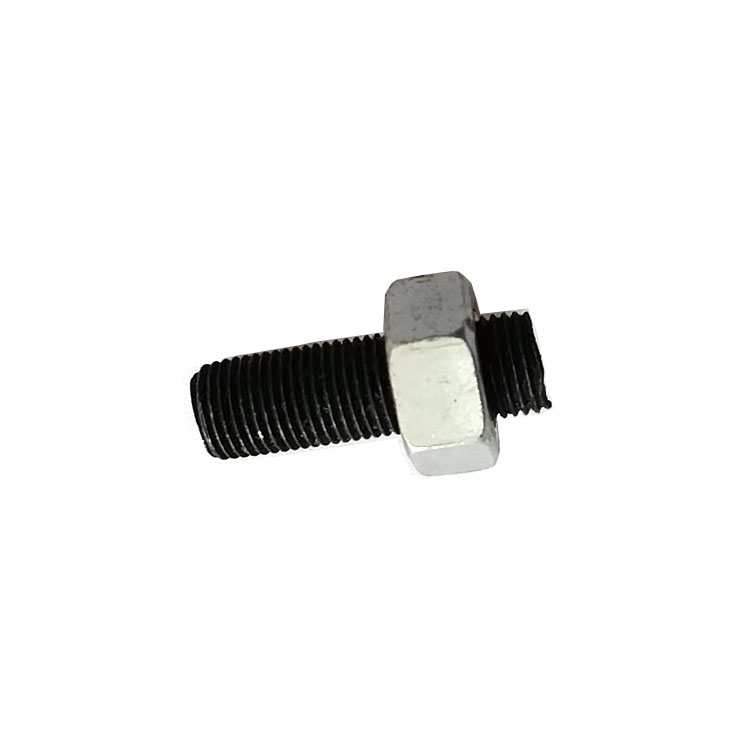

  • LS-463 Drill Cone Horn Mounting Stud with Nuts
    Used for LS-460 Ultrasonic drill.
    This stud with nuts, used for drill cone connection
    ¥ 0.00

    立即购买

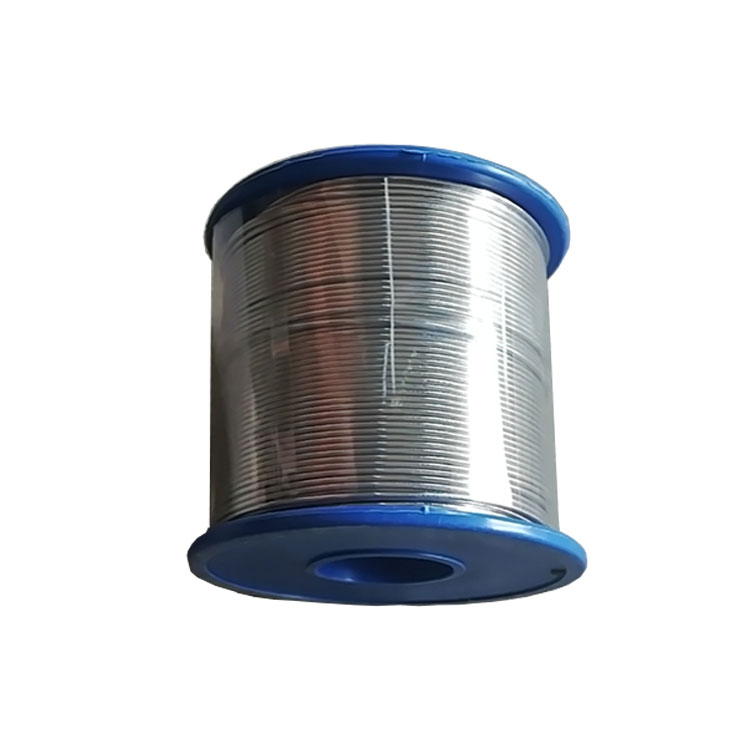

  • LS-464 Tin Solder
    Used to solder the drilling tips to drilling cone
    ¥ 0.00

    立即购买

  • LS-465 Drill Cone Wrench
    Ultrasonic drill machine wrench
    ¥ 0.00

    立即购买

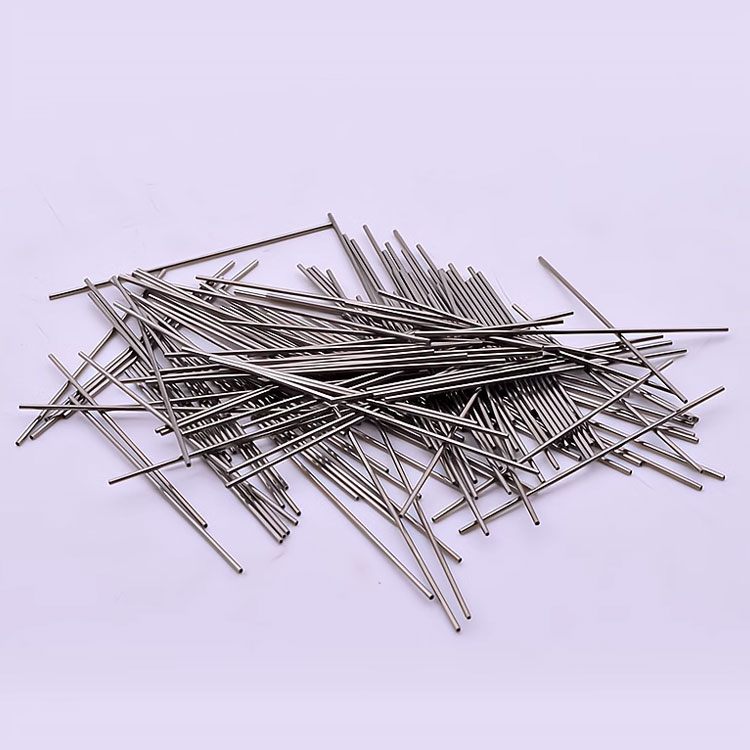

  • LS-466 Stainless Steel Drill Tips
    Material staninless steel, sizes from 0.6/0.7/0.8/0.9/1.0/1.2/1.5/1.8/2.0/2.5 mm, length 45/50/55/60/65 mm
    Used for LS-460 ultrasonic drilling machine and LS-470 multi needles ultrasonic drilling machine.
    ¥ 0.00

    立即购买

  • LS-467 Silicon Carbide 150#
    #150 graded silicone carbide
    ¥ 0.00

    立即购买

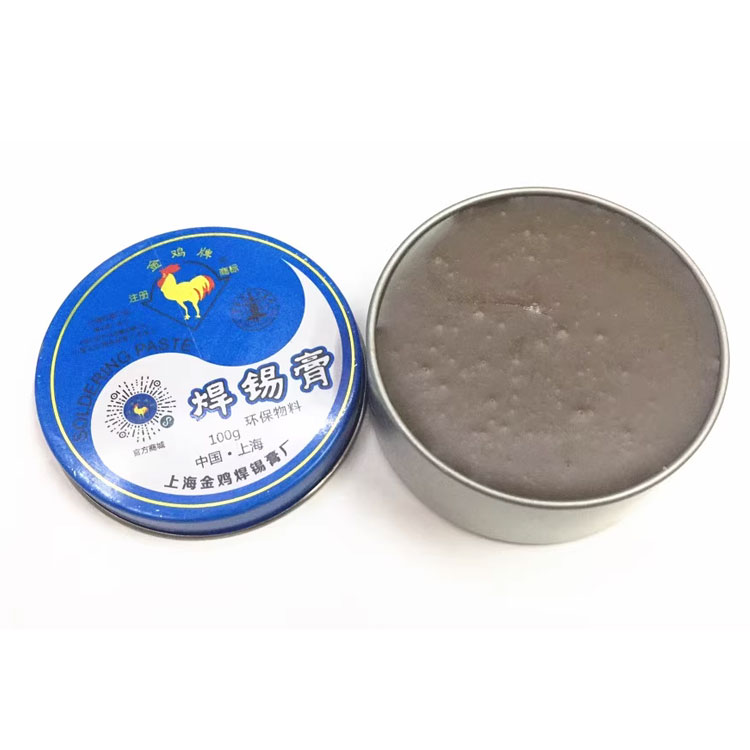

  • LS-468 Solder Flux
    solder flux for ultrasonic drill machine
    ¥ 0.00

    立即购买
